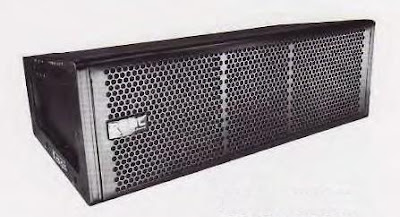

KMAX260X CAJA ACUSTICA LINE ARRAY REAL AURAX.

En las últimas décadas, la tecnología de los Line Array provocó una revolución en el campo del Audio Profesional. Como se necesitaba proyectar la voz con precisión a una distancia más larga evitando las interferencias innecesarias del reflector, los sistemas de parlantes con esta tecnología surgieron con un éxito notable.

Con la popularidad de los sistemas Line Array los nuevos modelos KMAX surgen como una excelente alternativ en relación a su calidad y convenientes precios. Años de investigación y desarrollo se conjugan en esta serie de parlantes logrando un concepto de excelentes características técnicas.

La KMAX260X CAJA ACUSTICA LINE ARRAY REAL AURAX Es una caja acústica de 3 vías para arreglos lineales diseñada para potenciar una variedad de aplicaciones sonoras de pequeña y mediana escala, donde se necesite versatilidad, un sistema escalable que requiera usarse colgado o apilado al piso tanto para eventos corporativos, en teatros o en recintos cerrados. También es adecuado como sistema de retardo para sistemas de refuerzo de gran escala al aire libre.

Siguiendo la filosofía de diseño de directividad constante del Kmax260x y el Kmax260sub, el Kmax-260x es un sistema de 3 vías que combina los principios de arreglos lineales con innovadoras técnicas de compresión sonora para producir una nueva generación de sistemas Line Arrays pequeños pero con un impacto dinámico máximo.

Características:
  • Perfecto acoplamiento y cobertura predecible
  • Medio y largo alcance
  • Ergonómico, rápido y seguro sistema de rigging
  • Ultra compacto conjunto array
  • Diseño trapezoidal para array curvos verticales
  • Excelente inteligibilidad
  • Alta versatilidad para instalaciones fijas y touring
Aplicaciones:
  • Refuerzo sonoro en Teatros
  • Salones de bailes
  • Refuerzo a sistemas de voz
  • Refuerzo sonoro en escenarios
Especificaciones:

KMAX260X

KMAX260XSUB

COMPONENTES DEL SISTEMA

COMPONENTES DEL SISTEMA

Drivers:

2x 6.5" (44mm), Bass 8 Ohm Driver

2x 10" ( 260mm coil) bass reflex

2" (44mm) Exit HF Compression Driver

ACÚSTICO Y ELÉCTRICO

ACÚSTICO Y ELÉCTRICO

Potencias:

LF: 200w AES, 800w Peak

400w AES, 1600w Peak

HF: 80w AES, 320w Peak

Amplificador

LF: 400wAES

1000w - 1400w a 8 Ohm

Recomendado:

HF:150wAES

Respuesta de

90Hz-2KHz, +-3dB(1 x Kmax-260X)

35Hz - 300Hz, +-3dB(1 x Kmax-260XSub)

Freciencia

2KHz-20KHz, +-3dB(8 x Kmax-260X)

HF: 109dB@1m , 139dB@1m Peak

LF: 100dB@1m , 136dB@1m Peak

SPL máximo

MF: 98dB@1m , 130dB@1m Peak

1 x Kmax-260X 100Hz-20KHz

8 x Kmax-260X 60Hz-20KHz

Dispersión Nominal

HF: 8 Ohm, MF: 8 Ohm,

4 Ohm

HF Dispersión

120° x 10° (H x V ) (80Hz-20KHz) 50H-20KHz

Crossover

2.5KHz active

L- R 24dB/oct ; 35-150Hz

Conectores

2 x Neutrik NL4 Speakon, (1 +- : LF, 2 +- : HF)

2 x Neutrik NL4 Speakon

CARACTERÍSTICAS FÍSICAS

CARACTERÍSTICAS FÍSICAS

Terminaciones

Componentes de resina poliuretano color negro

Componentes de resina poliuretano color negro

Puntos de colgado

Sistema integrado de colgado y puntos angulados

Sistema integrado de colgado y puntos angulados

Instalación

Sistema de colgado propietario

Sistema de colgado propietario

Asas

2 x mangos de barras y asas de transporte

4 x mangos de barras

Recinto

Madera contrachapada de 18 mm

Madera contrachapada de 18 mm

Dimensiones

(W) 570 x (H) 258 x (D) 188mm

(W) 570 x (H) 450 x (D) 340 mm

Caja embalaje

610 x 298 x 228 mm

570 x 450 x 340 mm

Volumen

0.6m3

0.6m3

Peso

19 Kg

35 Kg
